RotoBagger

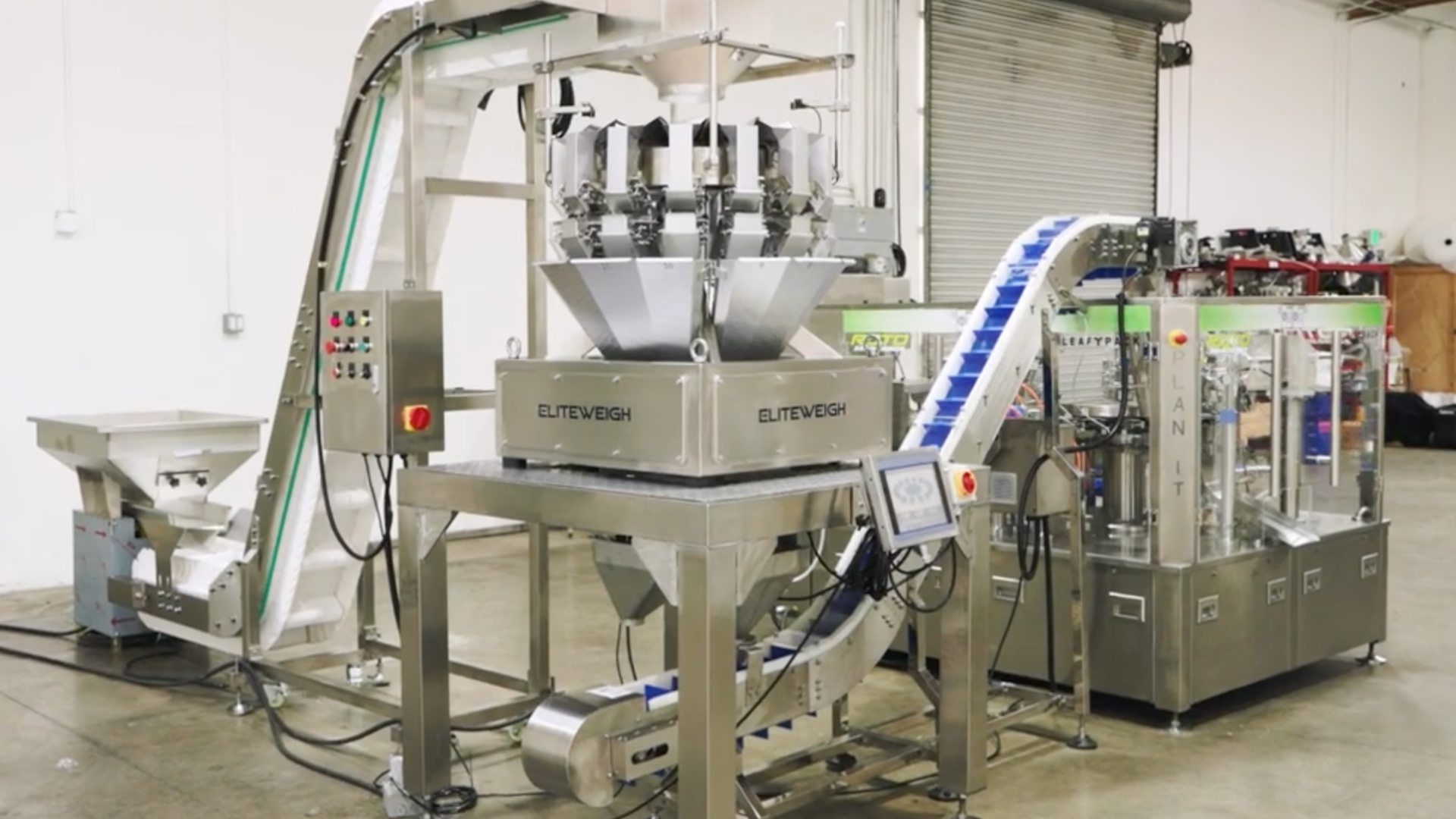

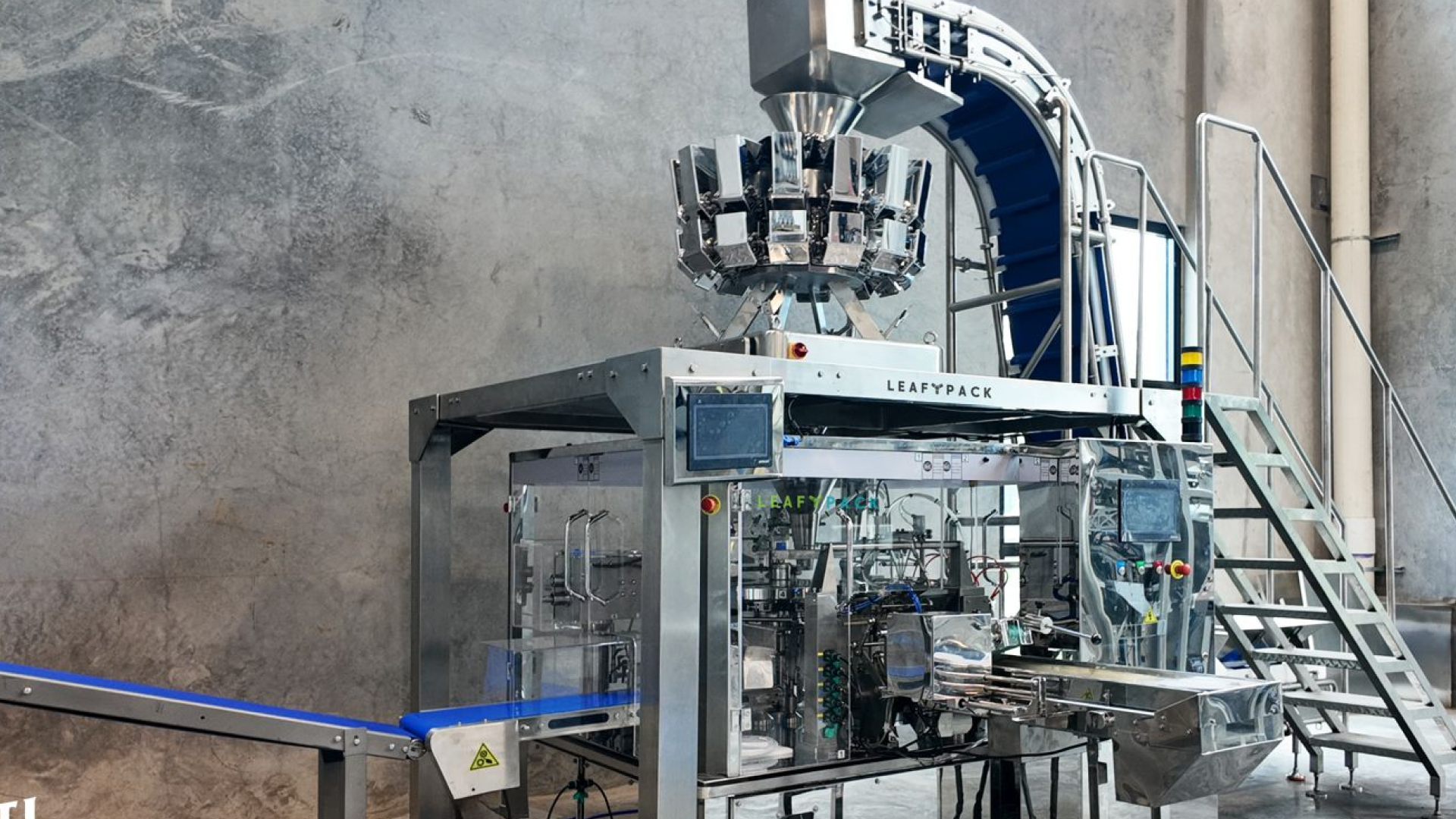

Our RotoBagger is ideal for high level speeds and high production in 24/7 environments. This pre-made pouch machine is capable of packaging between 30-50 bags per minute. The RotoBagger is easy to use and comes equipped with horizontal bag magazine for easy pouch loading, automatic servo changeover for different bag widths as well as optional automatic zipper opening device, gas flush, bag shaker at the fill station for product leveling and ink jet printer for lot code and best before date printing.

  • Bag Material: Multilayer Composite Pre-made Bag(e.g.: PET/PE)
  • Bag Type: Doy bag, Zipper bag, Edging bag 4 sides, Edging bag 3 sides, Paper bag
  • Upgradable Bag Type: Gusset Bag, Zipper Bag, Flat Bottom Pouch
  • Size Range: W:80~200mm | L: 80~380mm
  • Max Mechanical Speed: 30-60 ppm (pre-opened zipper)
  • Voltage: 220V, Single-phase, 60HZ, 2.5KW
  • Air Pressure: 0.65Mpa
  • Air Consumption: 0.4m³/min(Supplied by user)
  • Body Dimension: 1710 x 1505 x 1640mm
  • Touch Screen: 7″ color touch screen
